Energy saving, eye protection
Average draw of 200–300 W/m², compared with 450 W/m² on a regular outdoor screen.

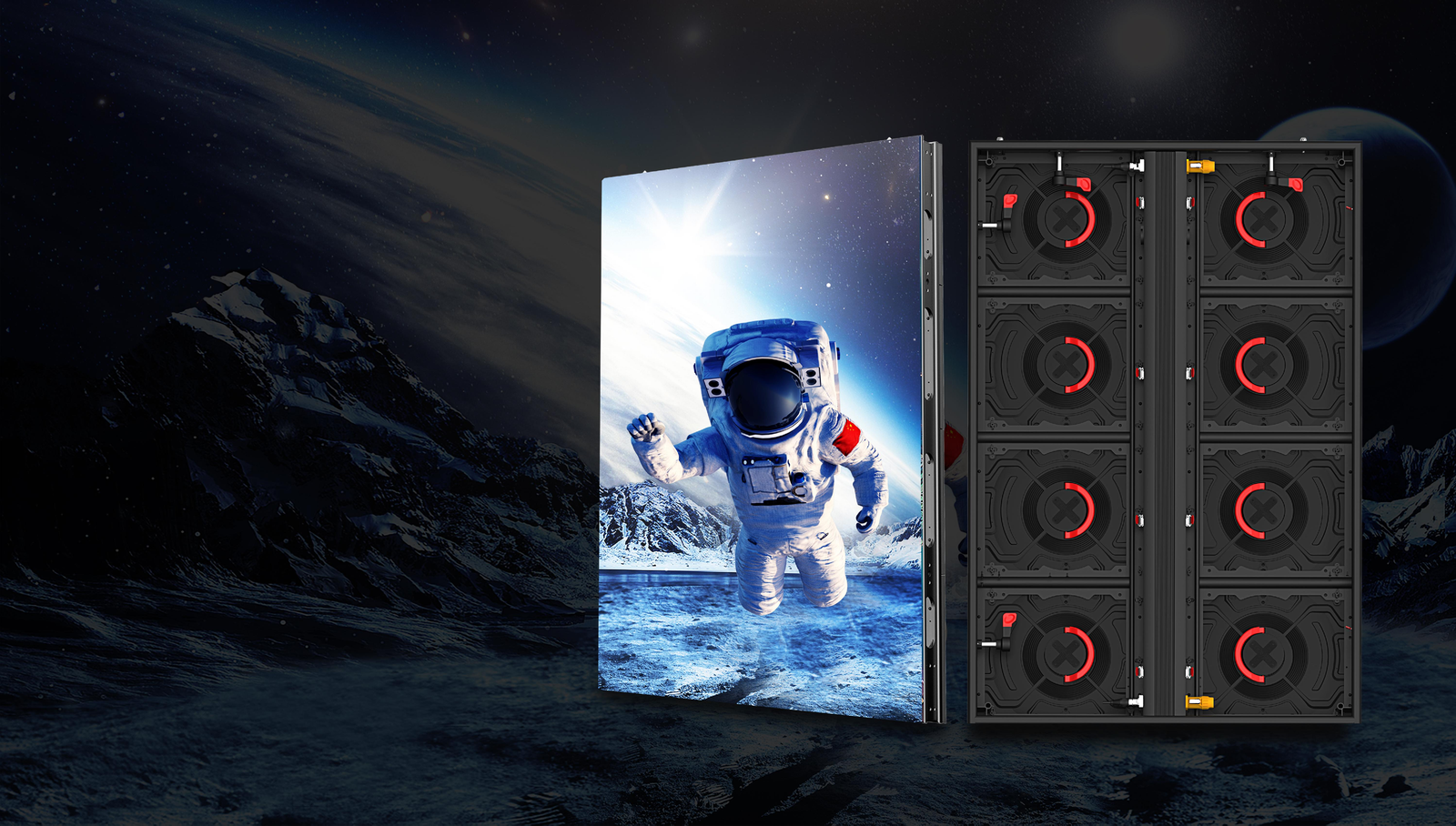

Outdoor LED Display
High-end
energy-saving
LED display.
ES Series
Brighter outdoor screens that draw up to 30% less power, weigh 35% less, and stay sealed to IP65 on both sides.
30%Power saving
35%Lighter cabinet
6500nits brightness
3840Hz refresh rate
Why ES Series
Six things the ES Series does well
Front & rear access
Hard-connected modules swap out from the front or the back, so it fits walls, poles and frames.
High refresh
3840 Hz refresh and 65536 grey levels. Motion stays sharp on camera and gradients stay smooth.
High brightness
Up to 6500 nits, easy to read in direct sun. Matte corrugated masks keep contrast at 10000:1.
Wide viewing angle
160° horizontal and 140° vertical, so the picture holds up from the side of the road.
Fan-free screen
Sealed, passively cooled aluminum cabinets. Nothing to clog and no fan noise.

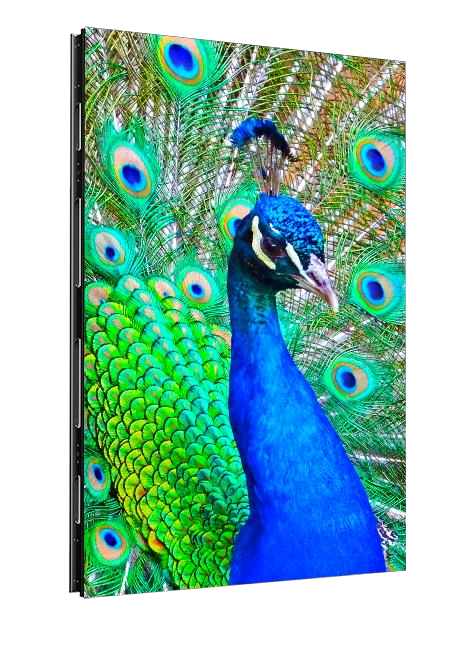

Front side
Matte corrugated masks for very high contrast
A matte, corrugated module mask cuts glare from sunlight, so blacks stay deep and colors stay vivid at a 10000:1 contrast ratio.
- Flatness ≤ 0.1 mm across the splice
- Color temperature 1000–18500 K, adjustable
- Seamless joins: fine structure, flat surface
Electric power saving
Uses up to 30% less power than a regular product
ES Series per 1 m²
Average200–300 W
Max780 W
Regular product per 1 m²
Average450 W
Max1000 W
Energy calculator
Estimate your yearly saving
Based on average draw: ES Series 250 W/m² vs. regular 450 W/m².
Estimated energy saved each year—kWh / year≈ — on your power bill

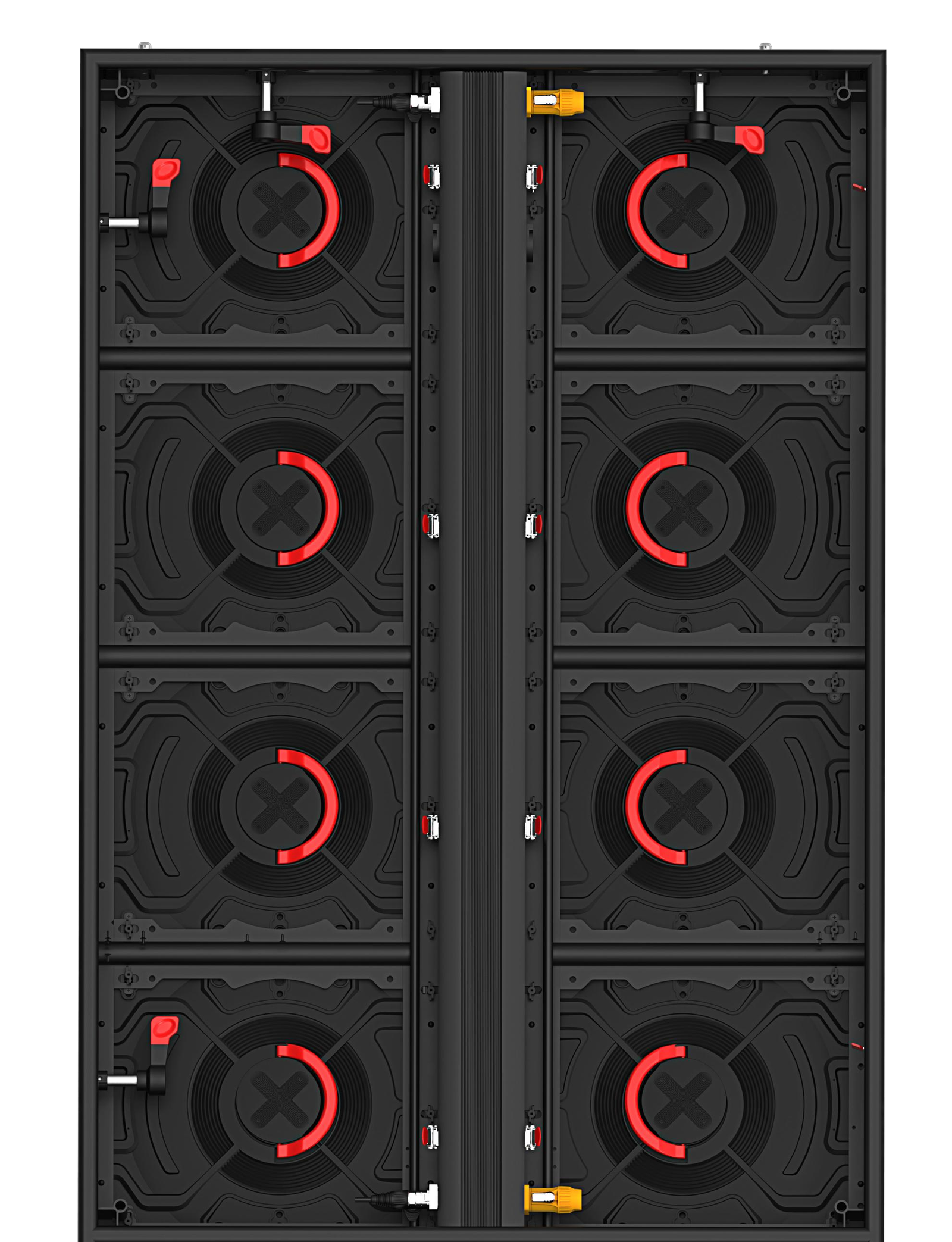

Back side & structure
Light aluminum cabinets that cost less to ship and install
800 × 900 mm17.5 kg
800 × 1200 mm22.5 kg
98 mmDepth

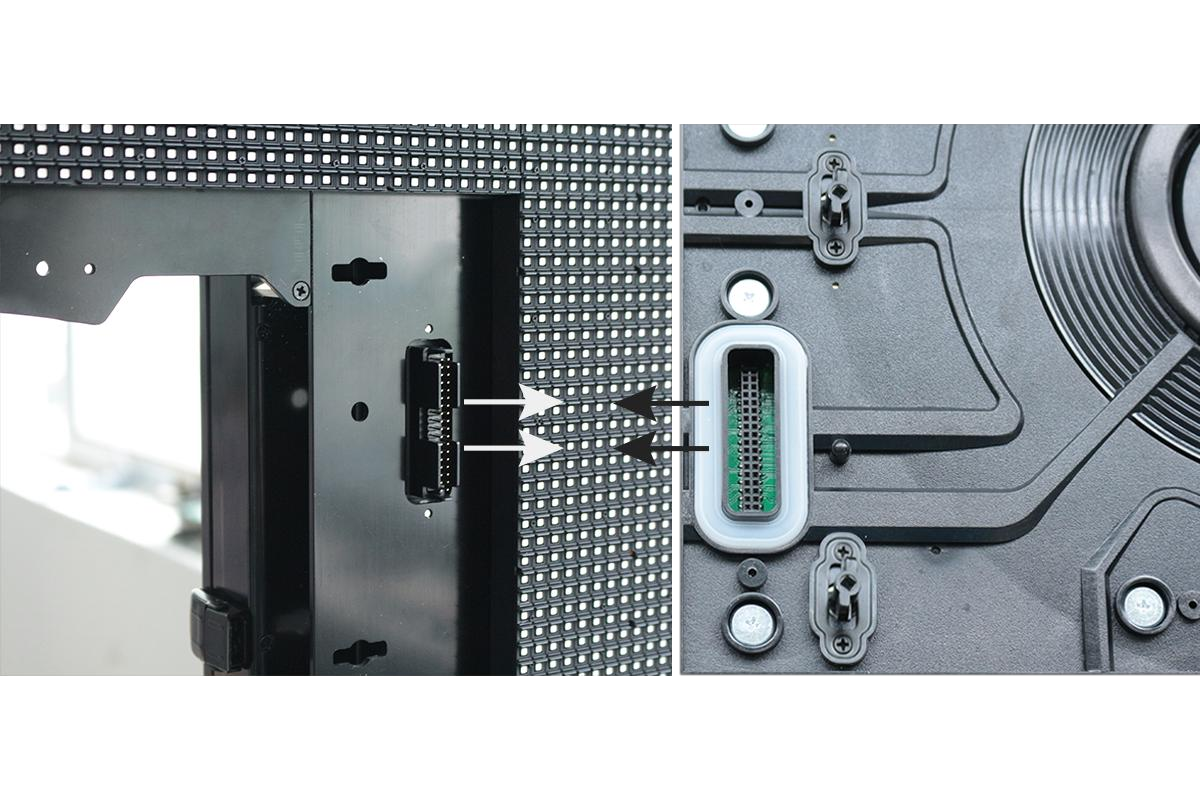

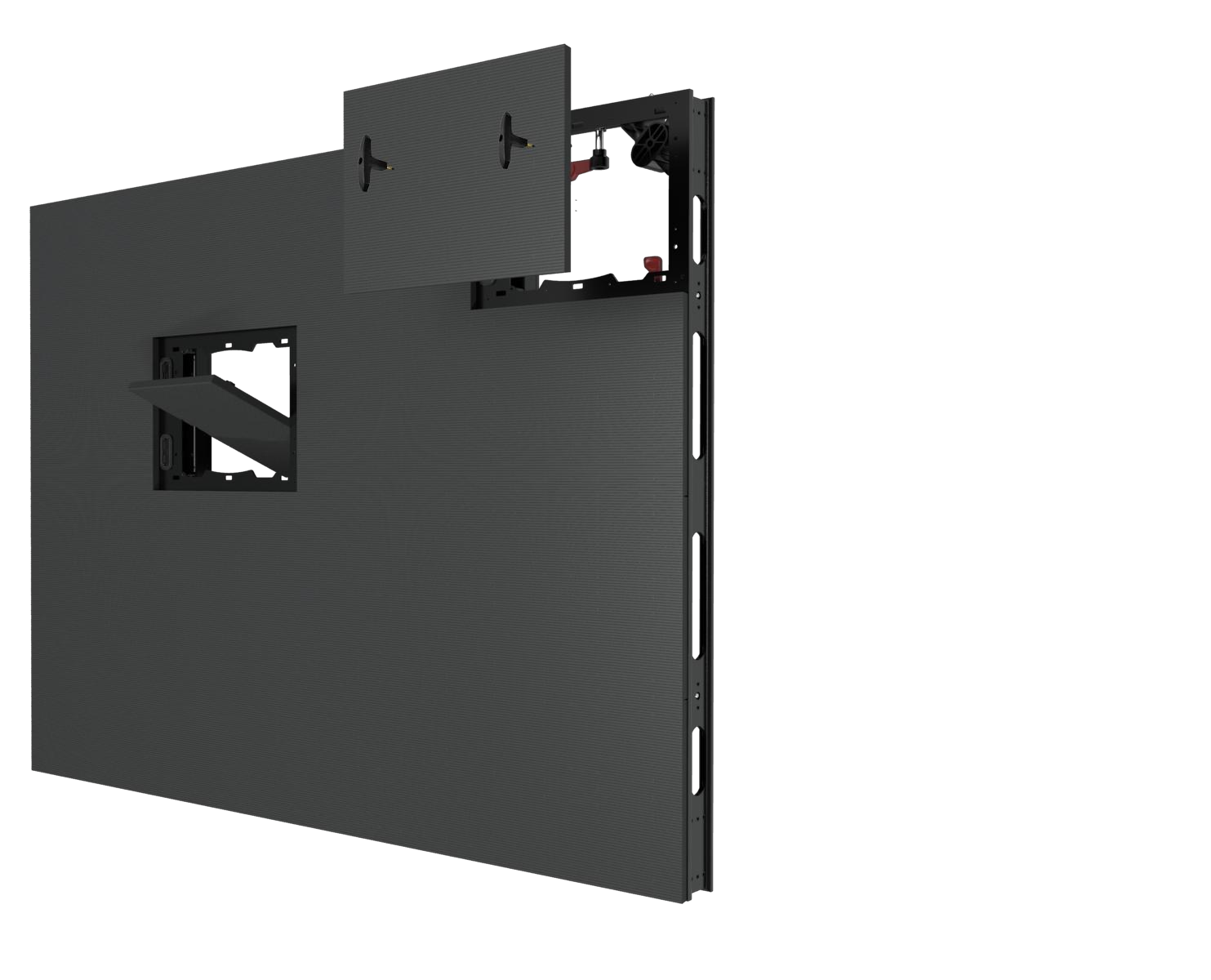

Hot-swapping
Hard connections let you service everything from the front. Modules swap out with no cables to unplug.

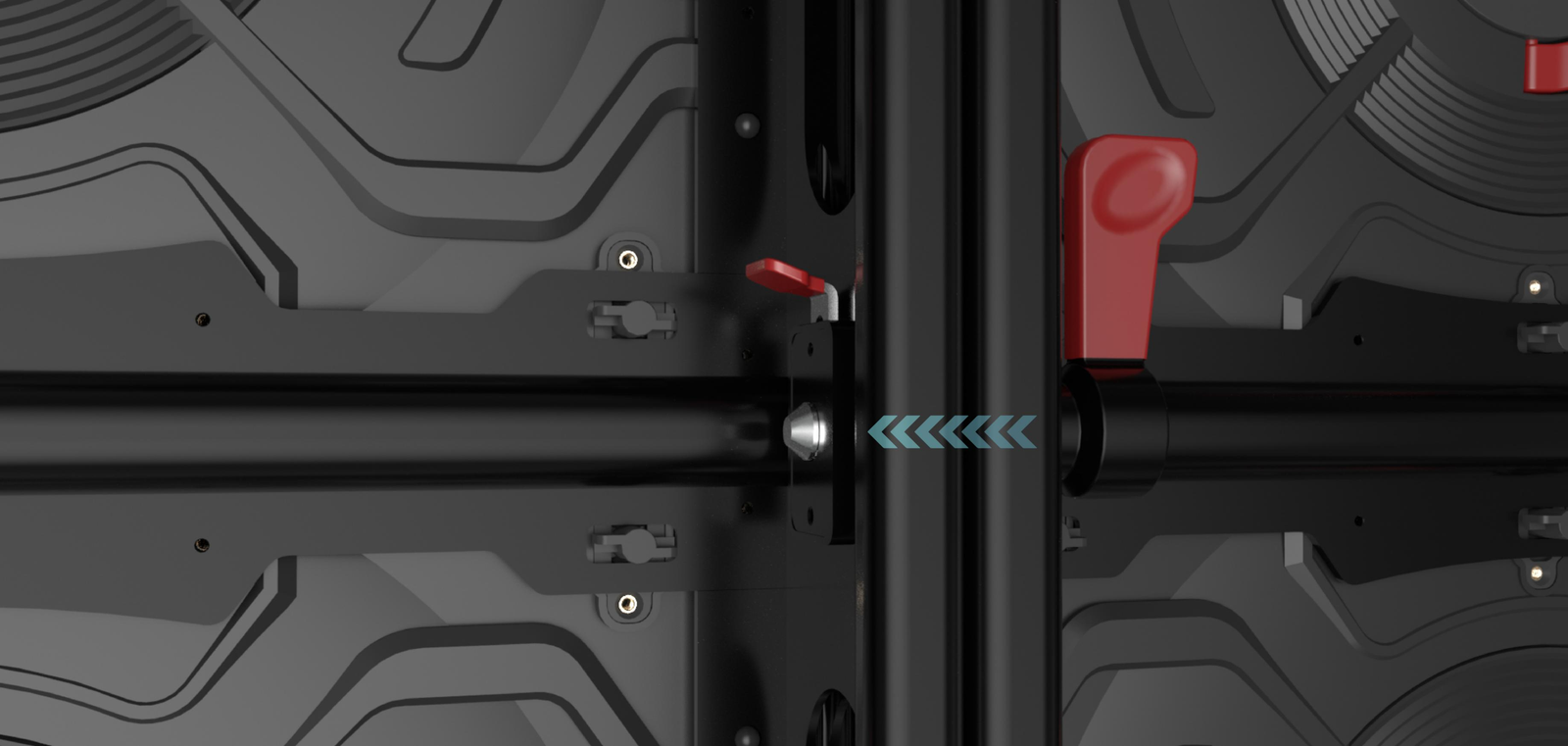

Fast lock
A steel fast-lock system and a precision aluminum frame give quick installs with flat, even splicing.
Front & rear maintenance
Service from either side, for walls, rooftops, poles and other outdoor sites.
IP65
Waterproof front & back
Both faces are sealed to IP65 and run from −20 to 60 °C at 10–85% RH.
Picture quality
High refresh rate. High grey scale. 160° viewing.
Specifications
Choose your pixel pitch
Choose a pitch to highlight it. A smaller pitch looks sharper up close, and a larger pitch costs less per m² for viewing from far away.
| Pixel pitch | P3.125 | P4.16 | P5 | P6.25 | P8.33 | P10 |
|---|
Certifications CCC · CE · RoHS · FCC · CB · TÜV · IEC
Get a quote for P3.125

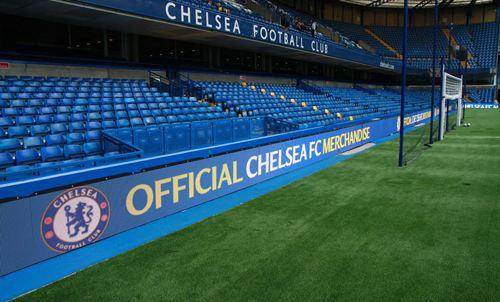

Stadium & perimeter screen
Pitch-side ready
Fit the ES Series with a soft mask, a folding stand and a soft rubber top, and it works as a perimeter board for football, rugby and other events.
- Building façades & billboards
- Retail storefronts & malls
- Stadiums, arenas & event stages
- Transport hubs & public squares

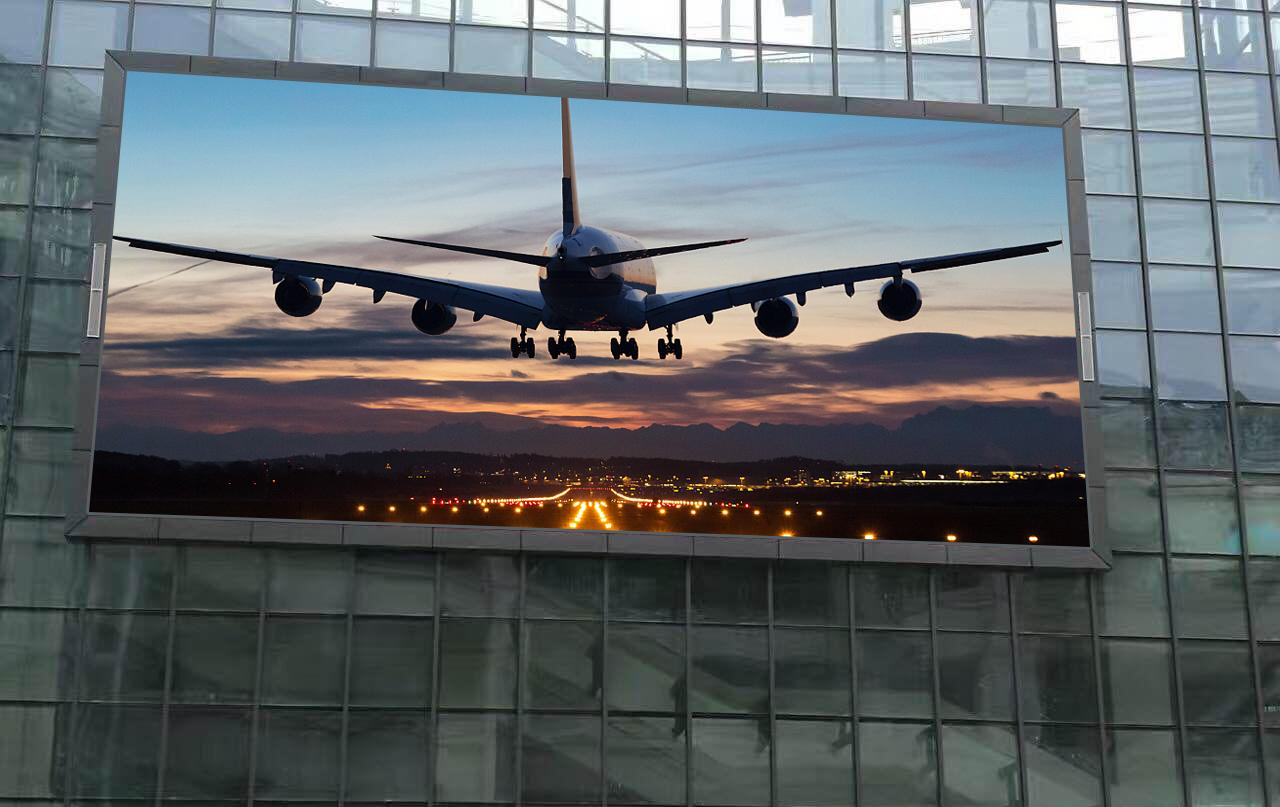

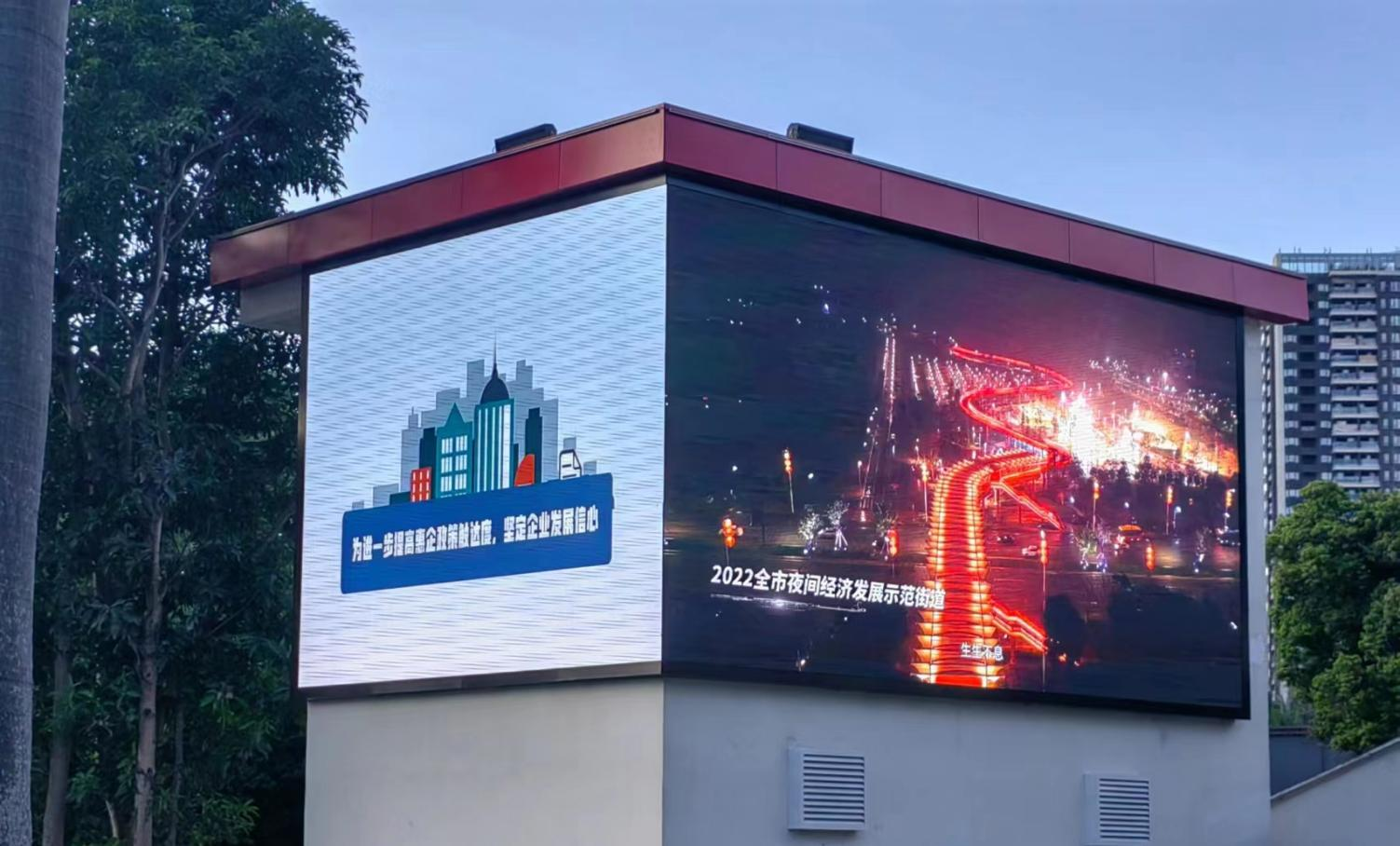

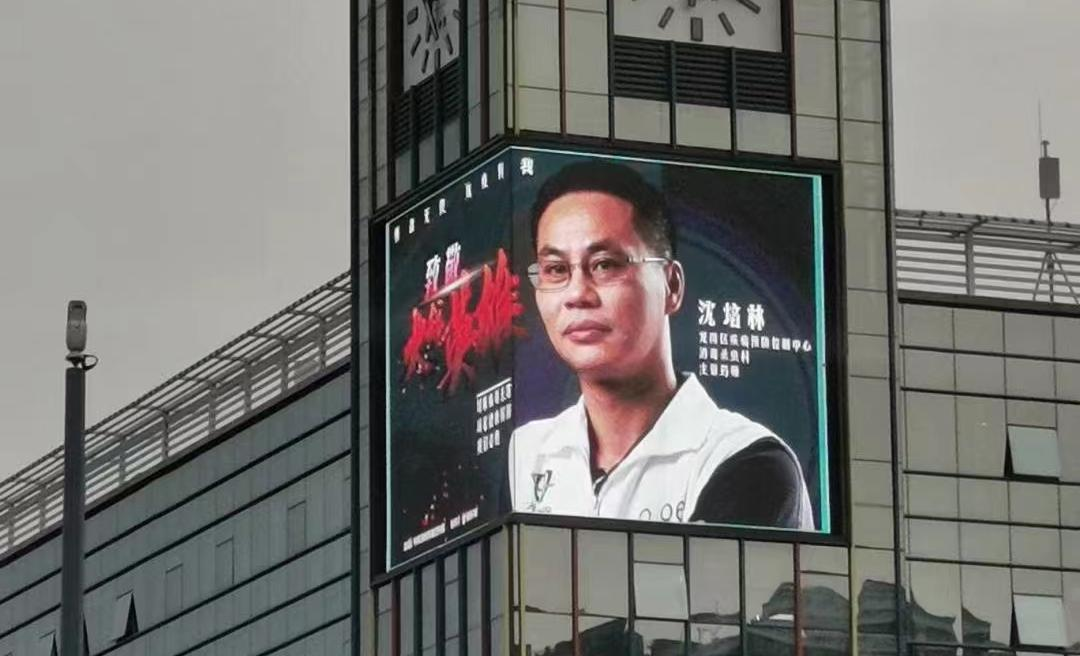

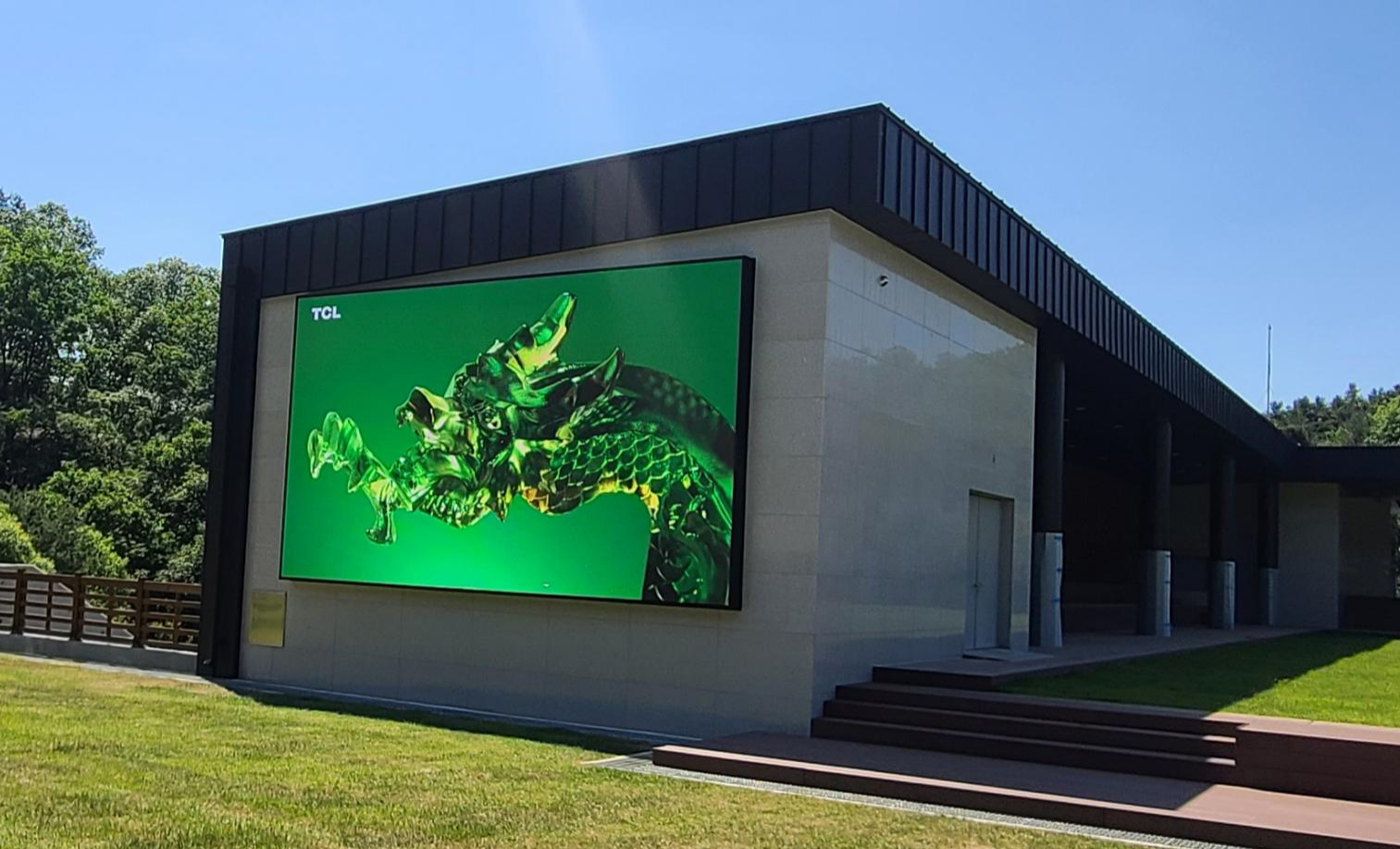

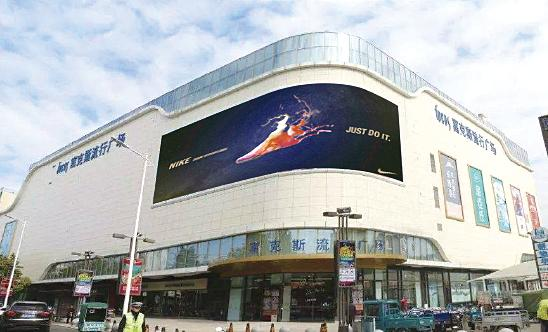

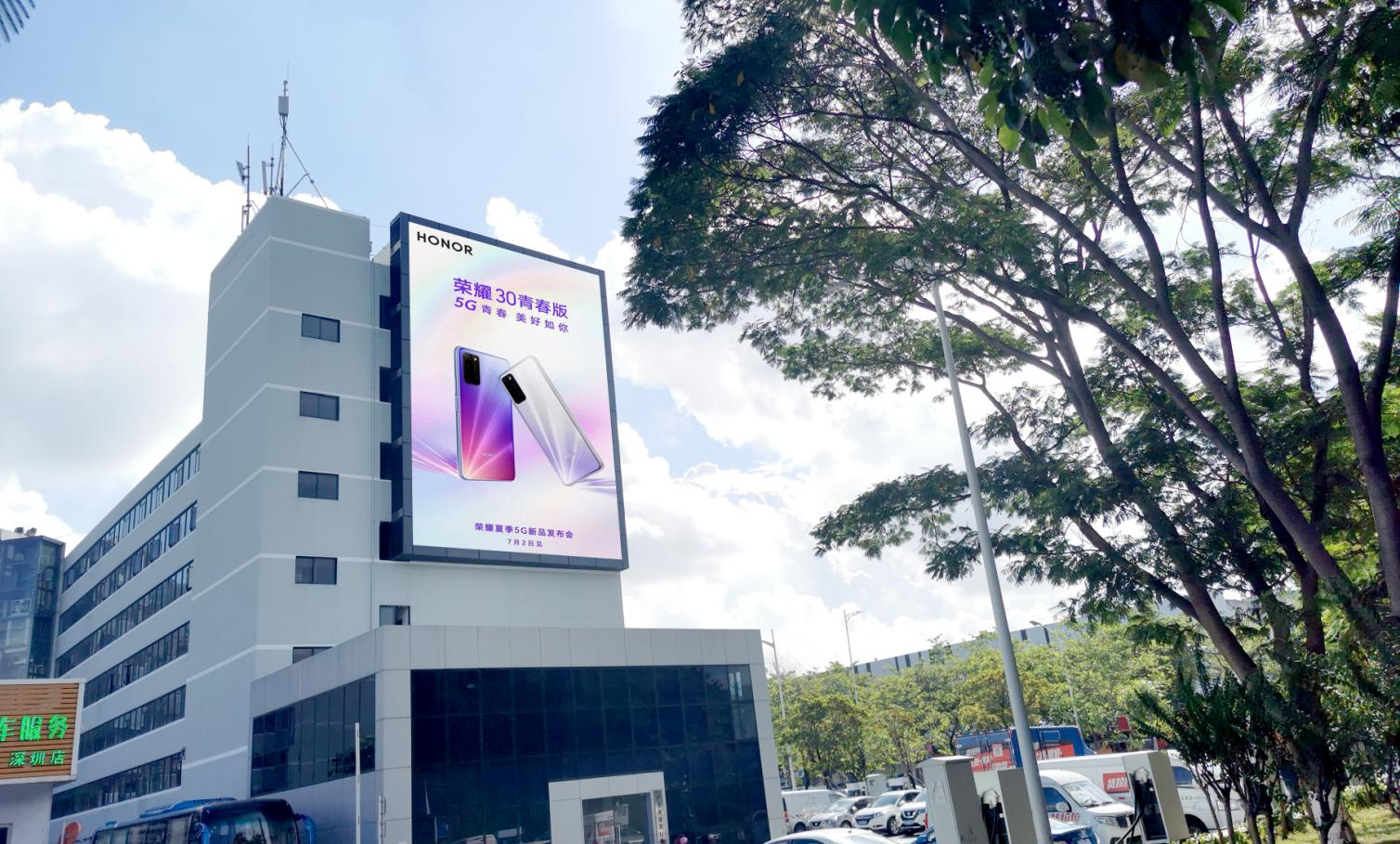

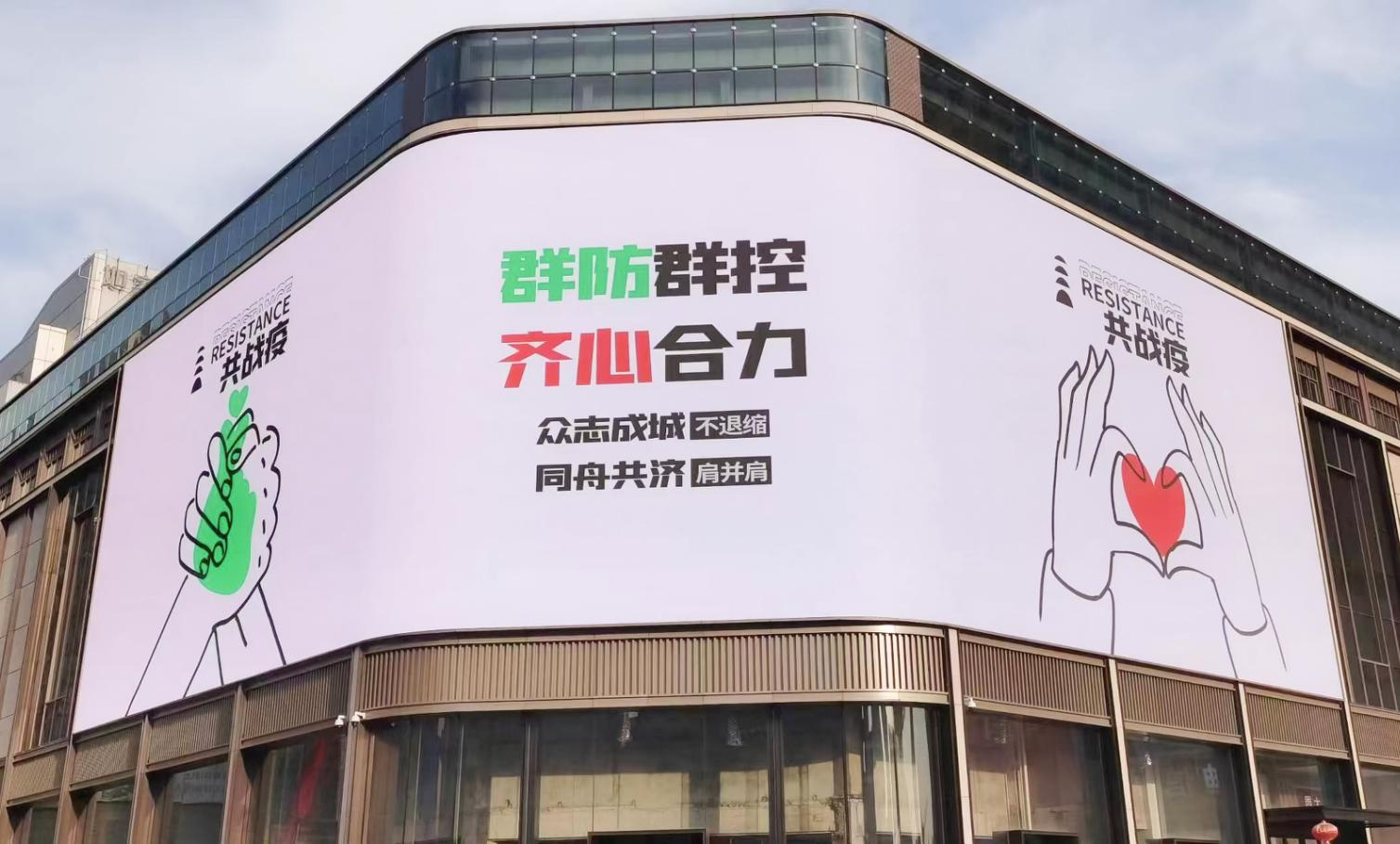

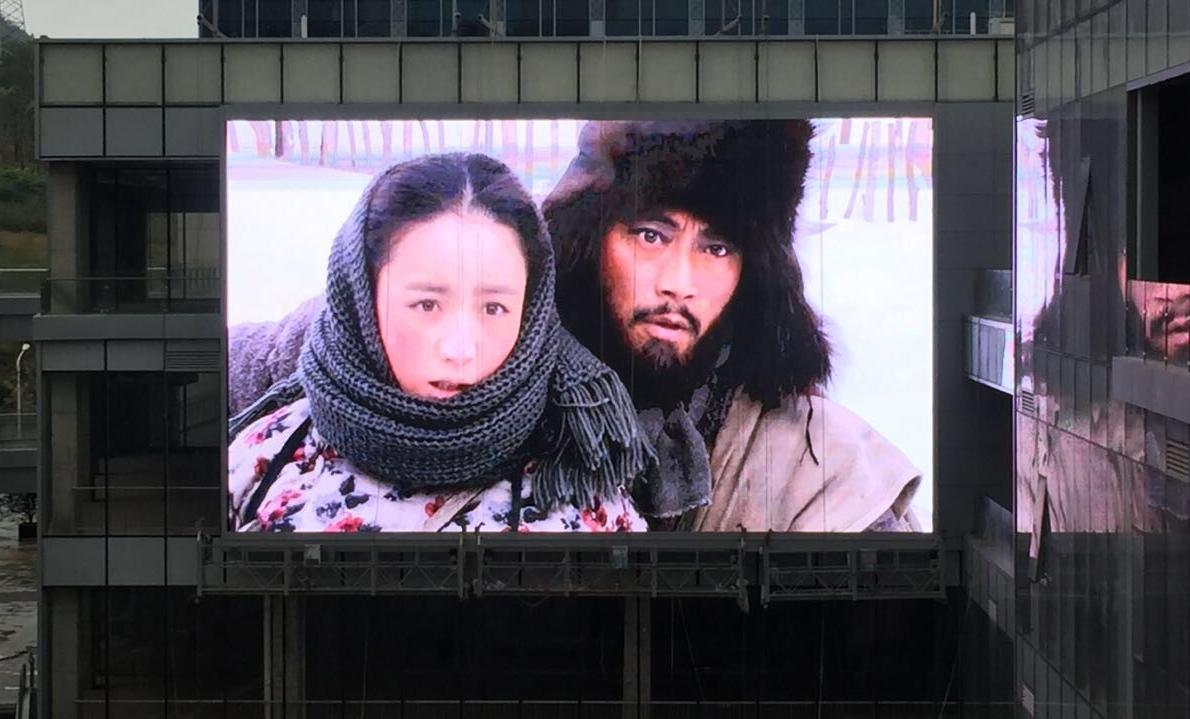

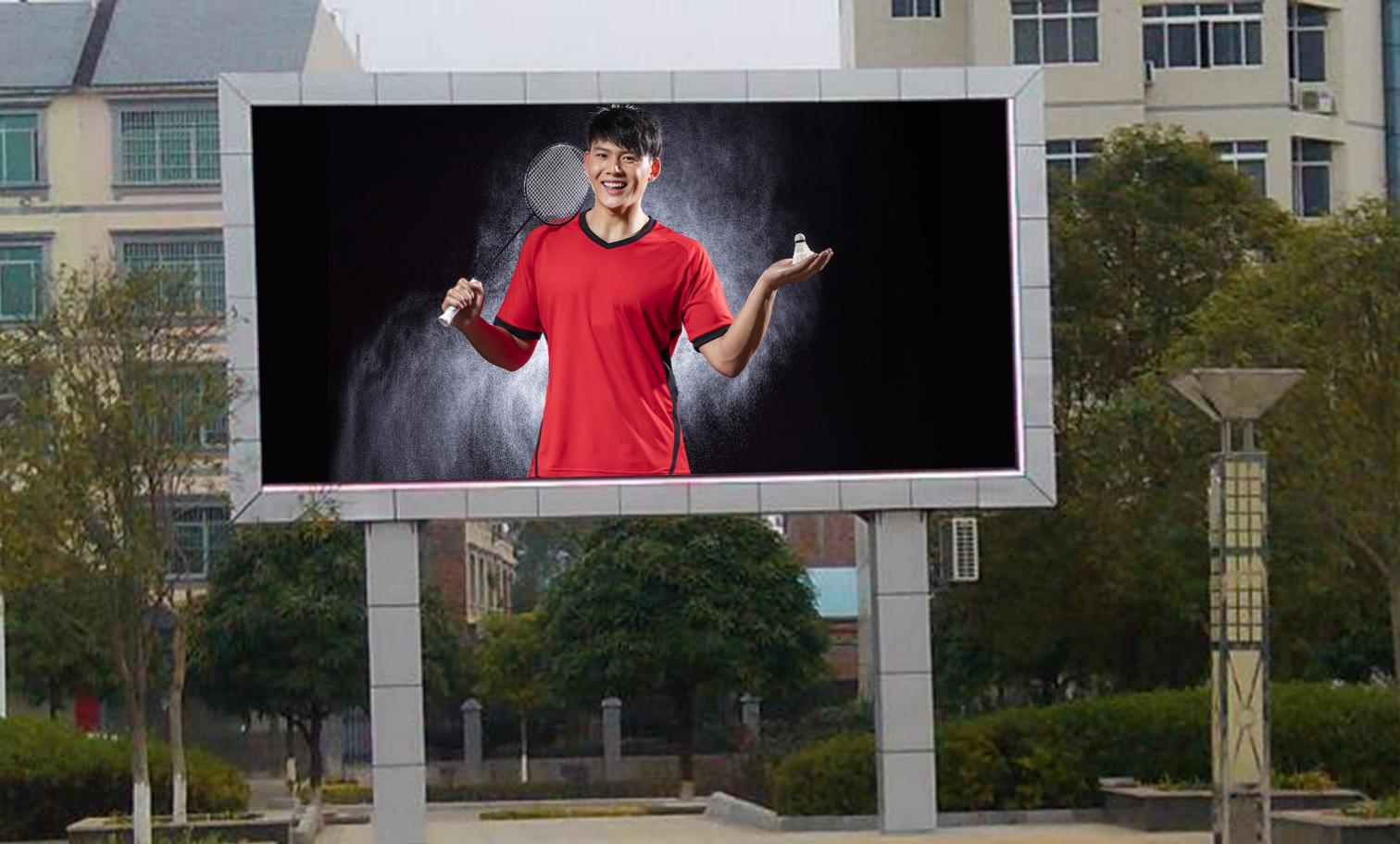

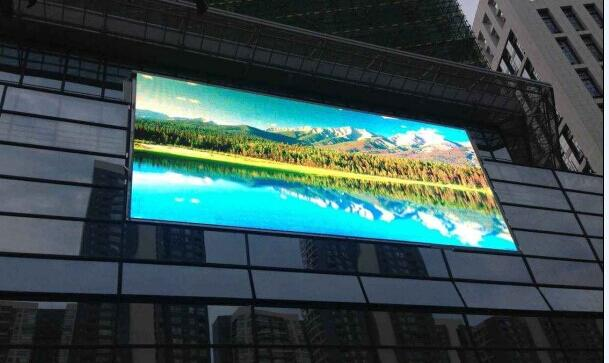

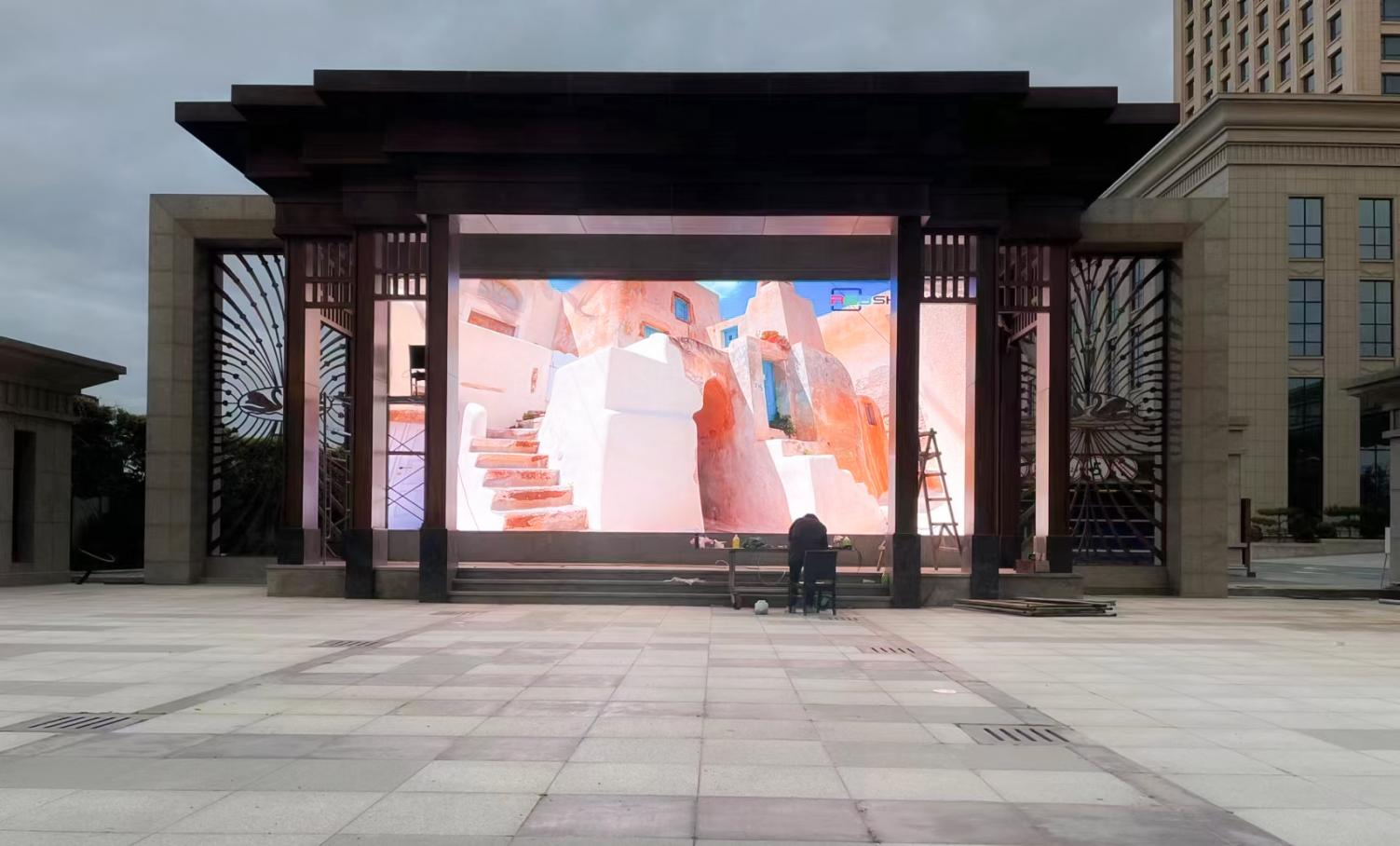

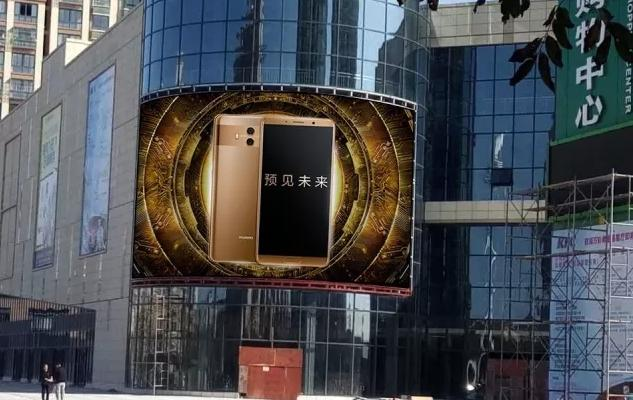

Case gallery
Installed around the world
Request a quote
Tell us about your project
Send us your screen size, pixel pitch and where it will be installed. Our sales engineers will reply with a tailored quotation, a cabinet layout and a lead time. Usually within one business day.
- Free layout & cabinet calculation
- Factory-direct pricing
- Samples available on request
